PCB Supply Chain Management with OrCAD X Live BOM

Key Takeaways

• A dynamic BOM helps mitigate supply chain risks by providing real-time component insights.

• Managing PCB supply chain risks involves material selection, component availability, and production logistics.

• OrCAD X Live BOM integrates supplier data, ensuring up-to-date part availability and pricing.

PCB designers should assess risks early by evaluating component choices and production logistics. Component selection, essential for long-term production, must consider issues like availability, security, shipping costs, and quality control. This blog examines PCB supply chain management with OrCAD X through a risk-first perspective—first exploring how an intelligent BOM can mitigate risks, then discussing key supply chain risks and strategies to keep components accessible when needed.

How a Maintained BOM Aids in PCB Supply Chain Management

Maintaining an up-to-date Bill of Materials (BOM) is more than just a documentation exercise—it’s a strategic asset. Traditional methods of manually generating BOMs or worrying whether the BOM accurately reflects the latest design updates have become obsolete. A dynamic, intelligent BOM is essential to anticipate supply chain disruptions, optimize component selection, and ensure that every part is compliant with current market conditions.

How OrCAD X Live BOM Enhances Supply Chain Management

PCB Supply Chain Management for Risk Reduction

Effective PCB supply chain management involves identifying and mitigating risks across the entire process—from design to production—to control costs and ensure sustainability. Each section below explains a key area of risk and why it is critical for managing your PCB supply chain. These include:

• Risk in the bare PCB

• Risk in the components

• Risk in production location

PCB in the Bare PCB

PCB risk comes in two forms: PCB materials risk and capabilities risk, where the latter is related to the former.

PCB materials risk includes any of the materials required to build the board. These materials are readily available in different localities, but the consignment of materials to a fabrication/assembly house involves shipping and logistics effort, just like any other set of components. Therefore, PCB risk essentially carries a component-level risk profile arising from supplier availability, shipping/import costs, and popularity.

IPC-4101/4103 standards standardize PCB material systems and define acceptable swaps for bare board builds, reducing risk—if functionally equivalent alternatives are evaluated and available across regions.

PCB Component Risk

Disruptions in your PCB supply change can halt production or inflate costs. In supply chain management, understanding component risk is essential to maintain a reliable production flow.

• Lack of Alternatives: Critical parts like specialty ASICs or unique processors may have no drop-in replacements, increasing vulnerability.

• High Demand: Popular components may be over-allocated to large buyers, creating supply shortages.

• Counterfeiting Risks: In-demand parts are susceptible to counterfeiting, necessitating rigorous inspection.

• Logistics & Tariffs: Overseas shipments can encounter customs delays and high duties, impacting supply chain timelines.

• Broker Activity: Brokers may deplete distributor inventories of popular parts, reducing availability for smaller buyers.

Unfortunately, some components have unique packages, pinouts, and features, and there won’t be any suitable replacements that are fully equivalent. A mix of designs, or a totally different component may be needed if the part can’t be procured in the required quantity.

PCB Production Risk

Finally, we have risk in production, which is both a form of financial risk and competitive risk. Although it does not have anything to do directly with the items listed in a BOM, where parts are procured and the logistics involved in getting these to an assembly facility to incur risk. The sources of risk related to production span multiple factors, all relating to the capabilities of the manufacturer, their location, and their level of quality control.

• Manufacturing Capabilities: Evaluate cost overruns, throughput consistency, and potential misrepresentation of production capabilities.

• Location Factors:

• Overseas Production: Offers lower costs but may suffer from longer shipping times, customs delays, and IP theft risks.

• Local Production: Typically features shorter lead times and reduced shipping complexities but might come with higher costs.

• Quality Control: Ensuring low defect and scrap rates through rigorous storage, cleaning, inspection, and testing processes is essential.

• Volume Considerations:

• Prototyping: Emphasizes production capability to validate design intent.

• Low-Volume: Balances location and capability risks.

• High-Volume: Stresses quality control and location factors, particularly with off-shore manufacturing.

• Compliance: Import taxes, tariffs, and regulatory requirements can affect production cost and scheduling.

If you decide to go off-shore for production, there needs to be some level of vetting before scaling a prototype into high-volume manufacturing. There is also a need for comprehensive evaluation of prototypes to ensure they have the right components, they perform functionally to spec, and the defect/scrap rate is low.

Wrapping it All Together: OrCAD X Live BOM, PCB Supply Chain Management, and PCB Risk Reduction

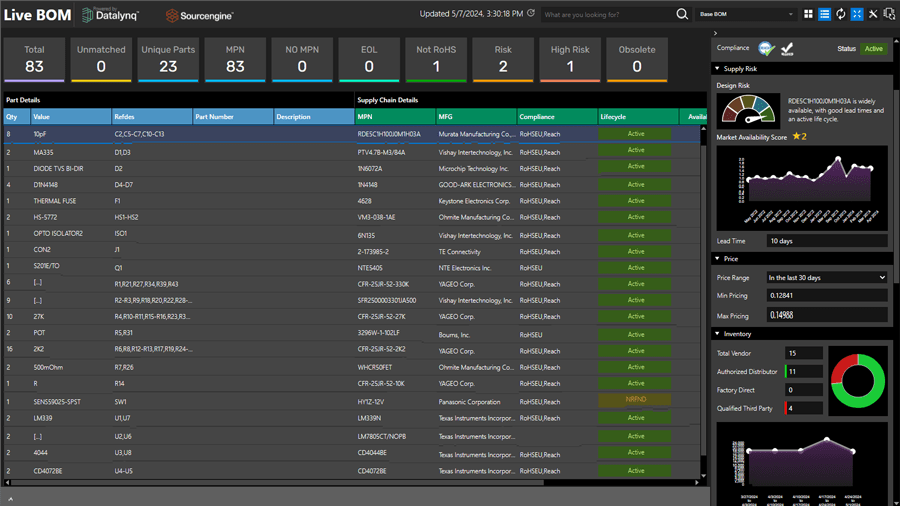

OrCAD X Live BOM addresses the challenges of PCB supply chain management by providing real-time visibility into component availability, pricing, lead times, and lifecycle status. Powered by Sourcengine™, it delivers a dynamic BOM health grade based on data from over one billion parts across 3600 global suppliers.

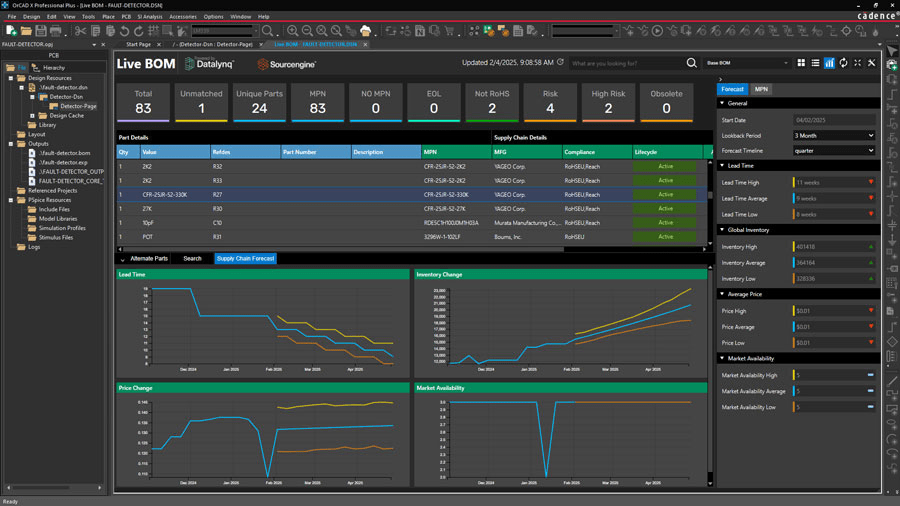

Integrated within the OrCAD X Capture design environment, Live BOM lets engineers compare pricing, verify multi-source availability, and calculate lead times without external tools. This immediate insight not only helps quickly identify high-risk components and substitute them with reliable, form-fit-function alternatives but also ensures the documentation, integrity, and reliability of your PCB supply chain—keeping your design process resilient and efficient from start to finish.

What’s New in OrCAD X 24.1 Live BOM

OrCAD X Live BOM now offers even more granular visibility into supply chain dynamics, allowing designers to make informed decisions about component selection and potential alternatives. By connecting directly with Sourcengine and Datalynq technologies, the tool provides instant access to critical procurement information.

PCB supply chain management requires real-time data on component availability, pricing, and lifecycle status. OrCAD X Live BOM integrates this critical information directly into your design workflow. See more at the OrCAD X platform software page and try out a free trial today!.
