How to Install OrCAD X and PSpice | Cadence

Published Date
Author Cadence PCB Solutions

Key Takeaways

  • PSpice is included with the OrCAD X suite, simplifying installation for circuit simulation.

  • Users must create a Cadence ID and request a free trial to access the software.

  • PSpice is located under the Cadence OrCAD X and Allegro X 24.1 program group after installation.

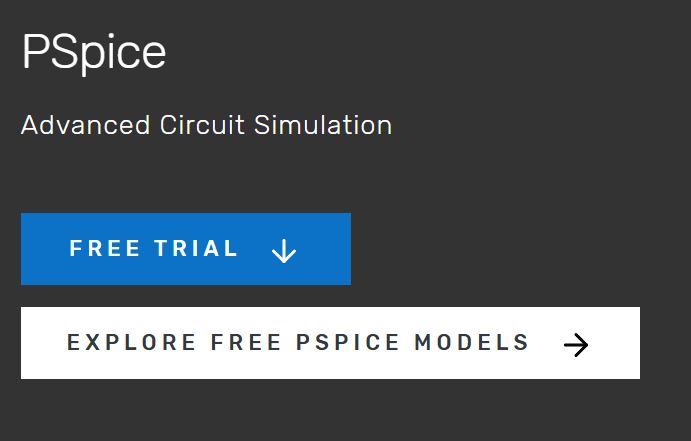

You can install PSpice as part of the OrCAD X suite and a free trial.

You can install PSpice as part of the OrCAD X suite and a free trial.

PSpice is a powerful simulation software used for electronic circuit design and analysis. Below, we’ve created a guide on how to install OrCAD X and PSpice.

Cadence PSpice and OrCAD X Are Bundled Together

Cadence PSpice and OrCAD X are bundled together in the installation package. When you download and install OrCAD X, PSpice is included as part of the suite, allowing you to seamlessly design and simulate circuits.

How to Install OrCAD X and PSpice Summary

Step

Action

Details

1

Search for OrCAD X Trial or PSpice

Open a browser, search for "OrCAD X trial," or “Cadence PSpice” and go to the official trial webpage.

2

Request Free Trial

Click to request the trial, which includes PSpice as part of the OrCAD X suite.

3

Create Cadence ID

Provide your email, name, and other required details to create an account if you’re a new user.

4

Confirm Order

Confirm your trial order. You'll receive an email with a link to download the OrCAD X suite.

5

Download Installer

Click the link in the email to download a small executable file for the OrCAD X suite.

6

Run Installer

Locate the file and run it as an administrator to start the installation process.

7

Authenticate & Agree

Log in with your Cadence ID and accept the license agreement.

8

Choose Installation Settings

Use recommended settings to install the full OrCAD X suite, including PSpice.

9

Complete Installation

The suite will download and install; find PSpice under the "Cadence OrCAD X and Allegro X 24.1" program group.

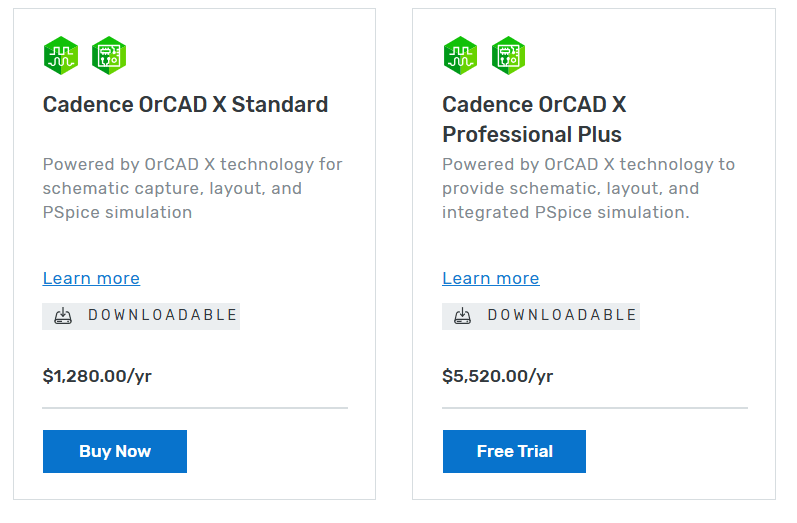

PSpice is bundled together with OrCAD X, both standard and professional versions.
PSpice is bundled together with OrCAD X, both standard and professional versions.

How to Install OrCAD X with PSpice Step-by-Step

Step 1: Search for PSpice

  • Open your favorite web browser and search for "PSpice Cadence," or visit the link: PSpice | Cadence.

  • The tutorial for installing PSpice is identical to that of OrCAD X, so you can follow this video as well:

Step 2: Request the Free Trial

  • On the PSpice trial page, click to request a free trial.

  • You’ll be redirected to the Cadence Online Shop with the OrCAD X trial added to your cart. PSpice is bundled with OrCAD X, and you can download both.

  • Alternatively, if you’re set on PSpice and OrCAD X, you can purchase it here.

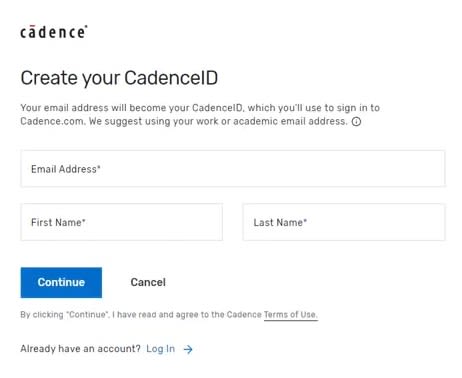

Window for creating a CadenceID needed for log-in.
Window for creating a CadenceID needed for log-in

Step 3: Create a Cadence ID

  • If you haven’t used Cadence products before, you’ll need to create a Cadence ID.

  • Provide your email address, first name, last name, and other typical details required for online purchases.

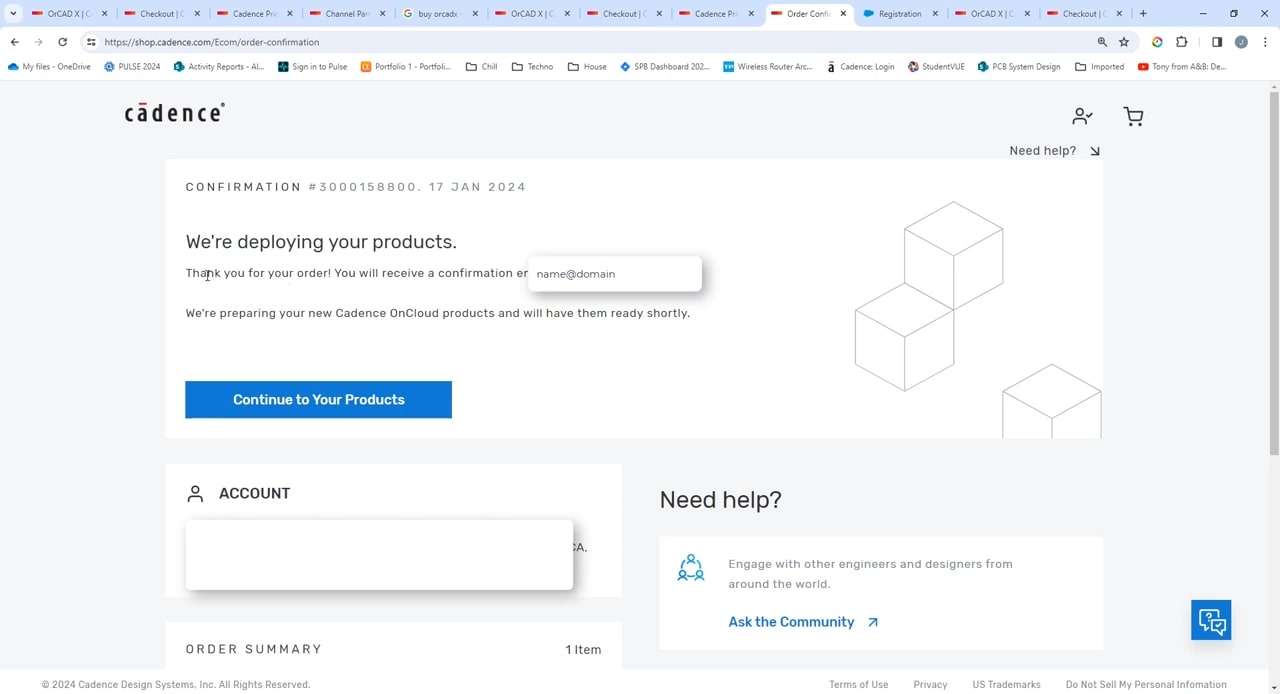

After creating an account, you’ll receive information in your email.
After creating an account, you’ll receive information in your email.

Step 4: Confirm Your Order

  • After creating your account, the shop webpage will confirm your order.

  • You’ll receive an email confirmation with a link to download the software.

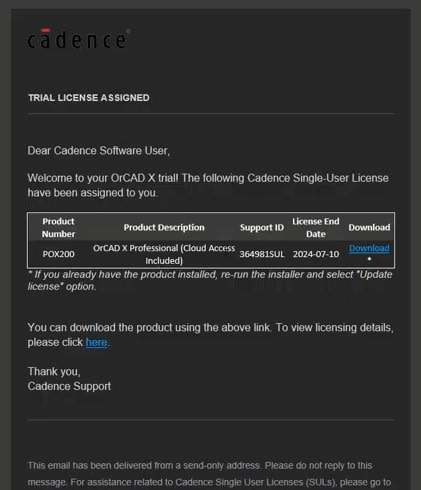

Clicking the link in the email will proceed to download an executable.

Step 5: Download the Installer

  • In the email, click the download link to get a small executable file.

  • The download should only take a few minutes.

Step 6: How to install PSpice with the Installer

  • Locate the downloaded executable file on your system.

  • Run it as an administrator (if you have administrative rights) to begin the installation.

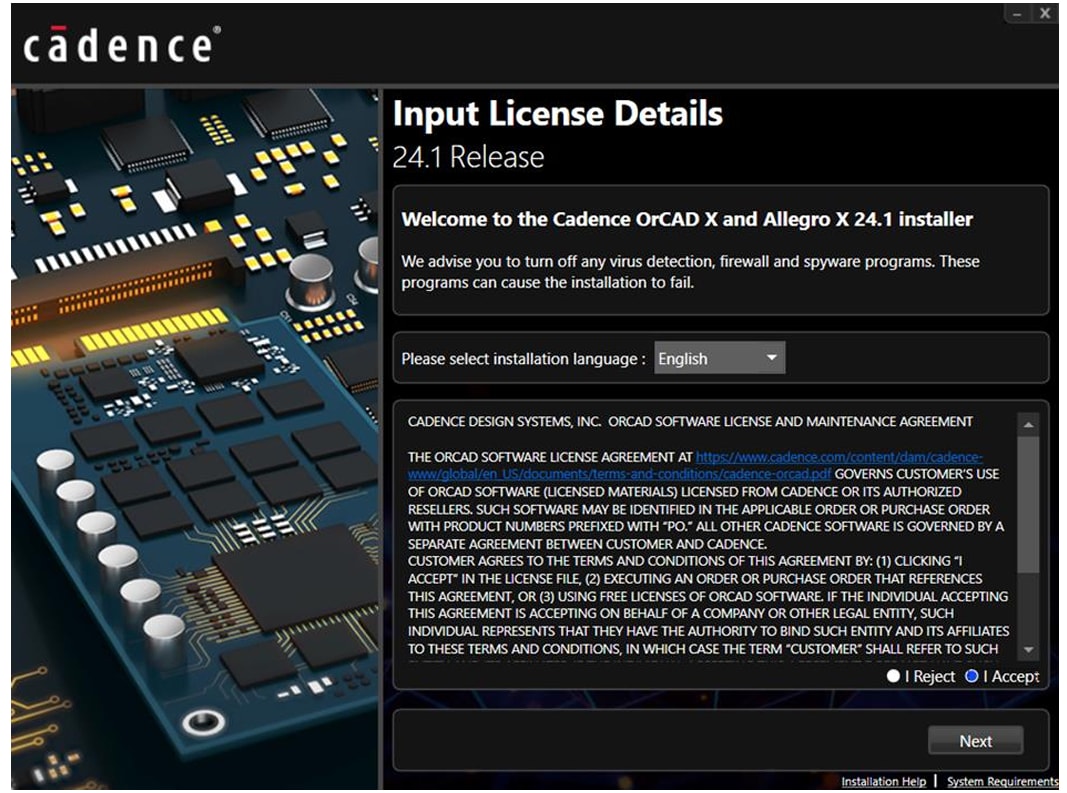

License agreement window.
License agreement window.



Step 7: Authenticate and Agree to Terms

  • The installer will ask you to authenticate using your Cadence ID.

  • Accept the license agreement to proceed.

Step 8: Choose Installation Settings

  • Select which user on your system will run the application (use the recommended settings).

  • The installer will download and install the full OrCAD X suite (including PSpice) in the background.

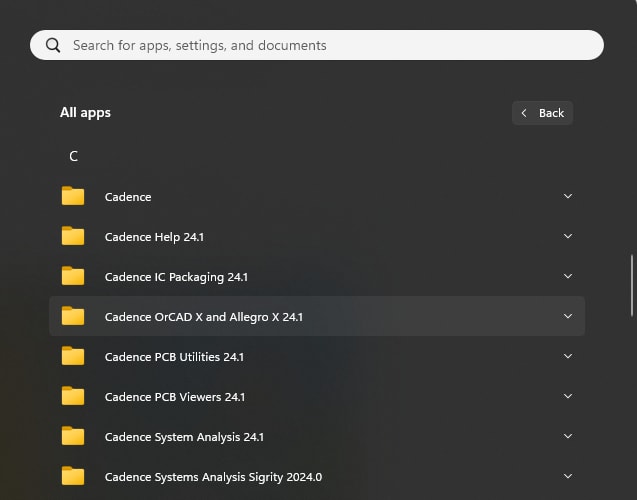

Cadence PCB program group with all the OrCAD X programs installed.

Cadence PCB program group with all the OrCAD X programs installed.

Step 9: Complete the Installation

  • Depending on your internet connection, this process may take 10–15 minutes.

  • Once complete, you’ll find the OrCAD X suite (including PSpice) under the Cadence OrCAD X and Allegro X 24.1 Program Group in your Start menu.

That’s it! You now know how to install PSpice, as part of the OrCAD X suite. Enjoy designing and simulating your circuits!  Explore Cadence's PCB Design and Analysis Software and OrCAD X platform to learn more and start your free trial today.
